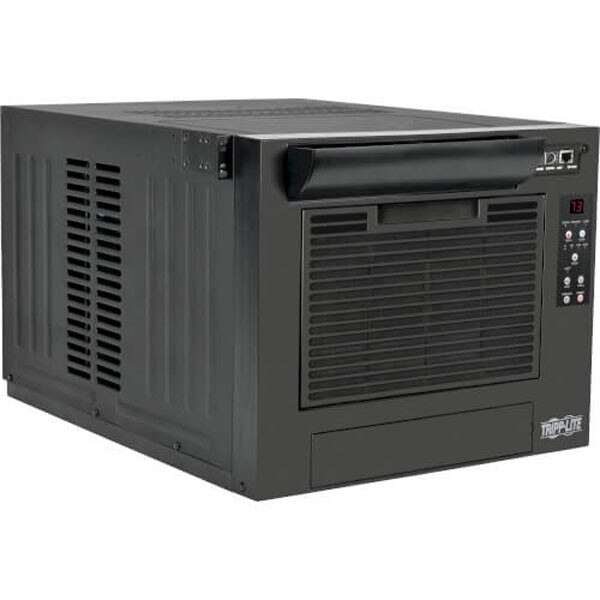

Factory Direct Tripp Lite SmartRack Rack-Mounted Server Cooling Unit - 7,000 BTU, 120V (SRCOOL7KRM)

(0)No Reviews yet
$978.99
Item Order#: NEW-ACC-COL-TPL-SRCOOL7KRM

SmartRack Rack-Mounted Server Rack Cooling Unit - 7,000 BTU, 120V (SRCOOL7KRM)

The SRCOOL7KRM is the first EIA-compliant rack-mounted server rack cooling system specifically designed to cool IT equipment in data centers, server rooms and network closets.

  • Saves valuable floor space in IT environments
  • Saves energy with efficient close-coupled cooling
  • Provides 7,000 BTU/h (2.0 kW) of cooling capacity
  • Supports optional remote management via Ethernet
  • Mounts at the bottom of an EIA-standard 19 in. rack

This SmartRack Rack-Mounted Server Rack Cooling Unit - 7,000 BTU, 120V (SRCOOL7KRM) Features:

  • Compact and Efficient Cooling
    • Saves valuable floor space in IT environments with available space at the bottom of a rack
    • Saves energy with efficient close-coupled cooling, cooling only the equipment inside the rack enclosure instead of the entire room
    • Provides 7,000 BTU/h (2.0 kW) of cooling capacity in a rack-mounted 8U chassis
    • Prevents equipment shutdowns, malfunctions and failures caused by overheating and temperature fluctuations
    • Uses environmentally friendly R410A refrigerant
  • Convenient Operation
    • Directional output vent aims air upward to cool overheated rack equipment
    • Supports unattended shutdown and startup, including automatic restarts after power failures
    • Intuitive front-panel controls with an informative digital display and diagnostic LEDs
    • Operates at noise levels comparable to an average office setting
  • Remote Management Support
    • Optional SRCOOLNET2 remote management accessory (sold separately) allows you to monitor temperatures, receive alerts, review logs and control settings over the Ethernet network from any location via SNMP, Web, SSH or telnet
    • SRCOOLNET2 includes ENVIROSENSE temperature and humidity sensor that allows you to link cooling operation with temperature readings up to 12 ft. away
  • Easy Installation
    • Plugs into a standard 15A outlet (NEMA 5-15R)
    • Built-in evaporator eliminates condensation—no floor drain or water collection tank needed
    • Magnetic air dam attaches to rack enclosure’s front door to optimize airflow
    • Includes mounting hardware for installation at bottom of EIA-standard 19 in. rack enclosures
OVERVIEW
UPC Carton UPC#037332184733
INPUT
Nominal Input Voltage(s) Supported120V AC
Electrical Consumption1020 Watts Max
Input Connection Type NEMA 5-15P
Input Cord Length (ft.)7
Input Frequency60 Hz
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display2-digit LCD displays numerical temperature readout
Front Panel LEDsPush-button control panel with multiple LEDs for operational configuration
PHYSICAL
Rack Height (U Spaces)8
Shipping Dimensions (hwd / in.)22.800 x 22.700 x 27.500
Shipping Weight (lbs.)82
Unit Dimensions (hwd / in.)13.9 x 17.35 x 22.52
Unit Weight (lbs.)61.6
ColorBlack
Form Factors SupportedRackmount
ENVIRONMENTAL
Cooling Capacity 7,000 BTU / 2.0 kW
COMMUNICATIONS
SNMP Compatibility SRCOOLNET2 (Optional) remote management accessory for remote monitoring and control
SPECIAL FEATURES
Dehumidifier1.25L / hour
Compressor TypeRotary
RefrigerantR410a (Environmentally friendly, Non ozone depleting)
Refrigerant Amount18.7 ounces
Air Flow198.25 CFM
Amp Draw Nominal8.5
Sound Level (Noise)57dbA
CERTIFICATIONS
CertificationsTested to UL484; CSA, RoHS; NOM
