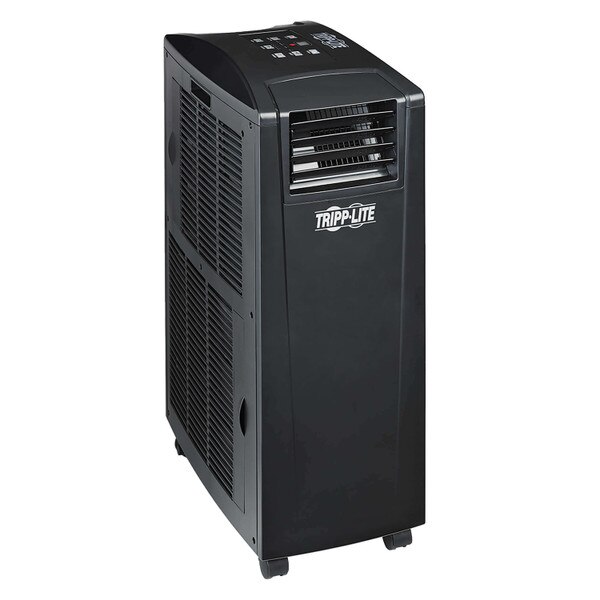

Factory Direct Tripp Lite SmartRack Portable Server Rack Cooling Unit - 12,000 BTU 120V Gen.2 (SRCOOL12K)
SmartRack Portable Server Rack Cooling Unit - 12,000 BTU 120V (SRCOOL12K)
Pumps 12,000 BTU of cold air into small server rooms, network closets and other IT environments. Ideal for cooling an overheated rack cabinet or an equipment hot-spot inside or outside of a rack enclosure.
- Provides 12,000 BTU (3.5 kW) of cooling capacity
- Also filters and dehumidifies air
- Plugs into a standard 15-amp outlet (NEMA 5-15R)
- Restarts automatically after power failure
- Can be operated remotely (requires SRCOOLNET, sold separately)
This SmartRack In-Row Precision Server Rack Cooling Unit - 60 kW, 208–230V, 50/60 Hz, Chilled Water Type (SRCOOL60KCW) Features:
- Compact Cooling
- Provides 12,000 BTU/h (3.5 kW) of cooling capacity in a portable chassis
- Prevents equipment shutdowns, malfunctions and failures caused by overheating and temperature fluctuations
- Also filters and dehumidifies the air to enhance equipment performance
- Uses environmentally friendly R410A refrigerant, which complies with worldwide standards
- Convenient Operation

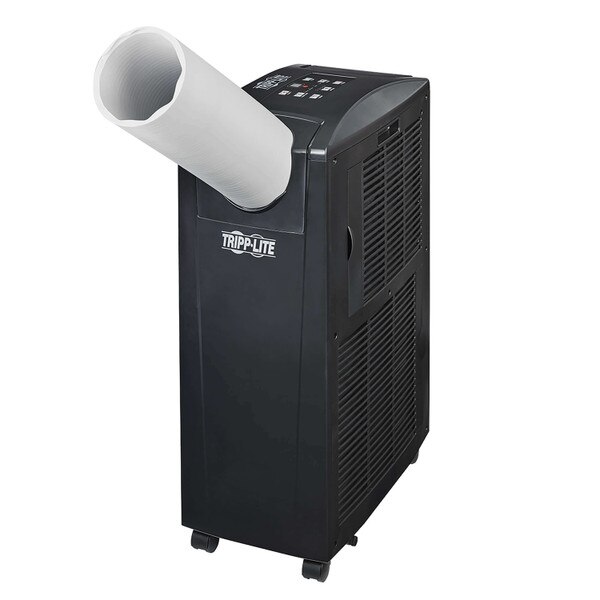

- Included 71-inch tube aims cold air where it’s needed, such as an overheated rack enclosure or equipment hot spot
- Built-in evaporator expels condensed water through exhaust tube—no floor drain or water collection tank needed
- Supports unattended shutdown and startup, including automatic restarts after power failures
- Intuitive top-panel controls with an informative digital display and diagnostic LEDs
- System-lock function disables all other buttons to prevent accidental input
- Optional SRCOOLNET remote management accessory (sold separately) allows remote monitoring of temperatures, alerts, logs and control settings from any location via SNMP, web browser, SSH or telnet
- Easy to Install
- Rolls into place on built-in casters
- Plugs into a standard 15-amp outlet (NEMA 5-15R)
- Includes window/drop-ceiling kit for extracting heat
- No external condenser, refrigerant piping or professional maintenance required
Specifications for SmartRack Portable Server Rack Cooling Unit - 12,000 BTU 120V (SRCOOL12K)
OVERVIEW | |
UPC Carton UPC# | 037332145765 |
INPUT | |
Nominal Input Voltage(s) Supported | 120V AC |
Electrical Consumption | 1400 Watt Max |
Input Connection Type | NEMA 5-15P |
Input Cord Length (ft.) | 6 |
Input Frequency | 60 Hz |
USER INTERFACE, ALERTS & CONTROLS | |
Front Panel LEDs | Touch sensitive control panel with multiple LEDs and numerical temperature readout |
PHYSICAL | |
Shipping Dimensions (hwd / in.) | 33.100 x 15.400 x 29.000 |
Shipping Weight (lbs.) | 79.30 |
Unit Dimensions (hwd / in.) | 30.63 x 11.81 x 19.88 |
Unit Weight (lbs.) | 73.9 |
Material of Construction | ABS |
Form Factors Supported | Tower |
ENVIRONMENTAL | |
Cooling Capacity | 12,000 BTU / 3.5 kW |
SPECIAL FEATURES | |
Dehumidifier | 2.5 liters/ hour |
Compressor Type | Rotary |
Refrigerant | R410a (Environmentally friendly, Non ozone depleting) |
Refrigerant Amount | 22 oz. |
Air Flow | Evaporator = 329 CFM / Condenser = 311 CFM |
Amp Draw Nominal | 10.5A |
Sound Level (Noise) | 57dB |
Air Supply Tube Length | 71 inches |
Air Exhaust Tube Length | 118 inches |
Air Exhaust Tube Diameter | 5.16 inches |
CERTIFICATIONS | |
Certifications | Tested to UL484; CSA, RoHS |
