Factory Direct Tripp Lite SmartRack Portable Server Rack Cooling Unit - 12,000 BTU 120V Gen.2 (SRCOOL12K)

(0)No Reviews yet
$883.99
Item Order#: NEW-ACC-COL-TPL-SRCOOL12K

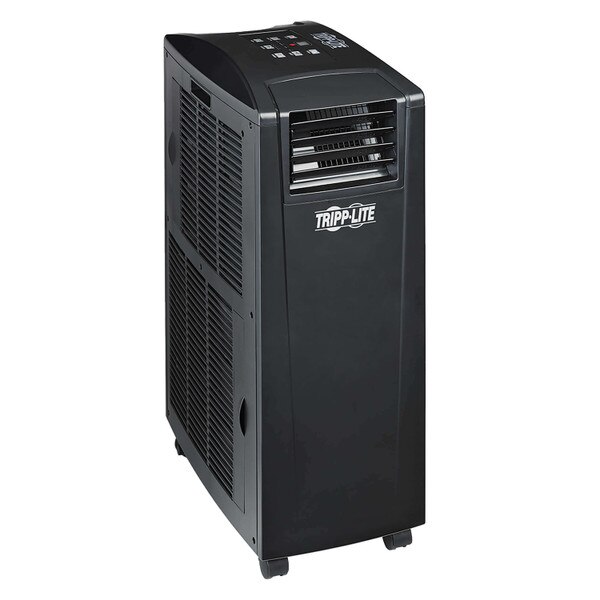

SmartRack Portable Server Rack Cooling Unit - 12,000 BTU 120V (SRCOOL12K)

Pumps 12,000 BTU of cold air into small server rooms, network closets and other IT environments. Ideal for cooling an overheated rack cabinet or an equipment hot-spot inside or outside of a rack enclosure.

  • Provides 12,000 BTU (3.5 kW) of cooling capacity
  • Also filters and dehumidifies air
  • Plugs into a standard 15-amp outlet (NEMA 5-15R)
  • Restarts automatically after power failure
  • Can be operated remotely (requires SRCOOLNET, sold separately)

This SmartRack In-Row Precision Server Rack Cooling Unit - 60 kW, 208–230V, 50/60 Hz, Chilled Water Type (SRCOOL60KCW) Features:

  • Compact Cooling
    • Provides 12,000 BTU/h (3.5 kW) of cooling capacity in a portable chassis
    • Prevents equipment shutdowns, malfunctions and failures caused by overheating and temperature fluctuations
    • Also filters and dehumidifies the air to enhance equipment performance
    • Uses environmentally friendly R410A refrigerant, which complies with worldwide standards
  • Convenient Operation

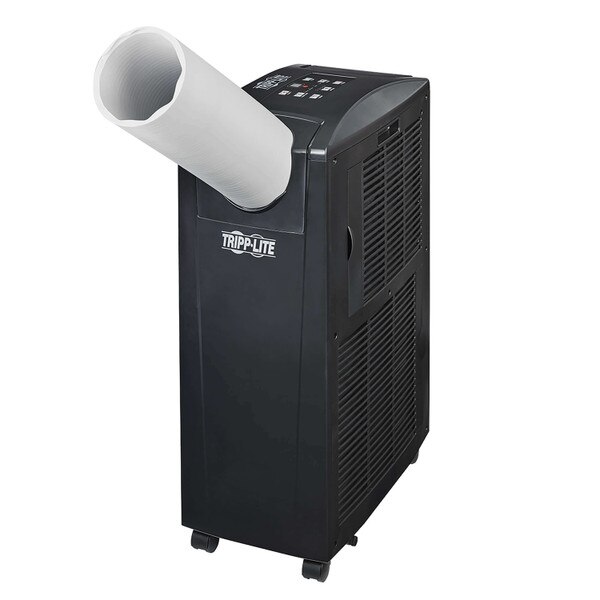

    • Included 71-inch tube aims cold air where it’s needed, such as an overheated rack enclosure or equipment hot spot
    • Built-in evaporator expels condensed water through exhaust tube—no floor drain or water collection tank needed
    • Supports unattended shutdown and startup, including automatic restarts after power failures
    • Intuitive top-panel controls with an informative digital display and diagnostic LEDs
    • System-lock function disables all other buttons to prevent accidental input
    • Optional SRCOOLNET remote management accessory (sold separately) allows remote monitoring of temperatures, alerts, logs and control settings from any location via SNMP, web browser, SSH or telnet
  • Easy to Install
    • Rolls into place on built-in casters
    • Plugs into a standard 15-amp outlet (NEMA 5-15R)
    • Includes window/drop-ceiling kit for extracting heat
    • No external condenser, refrigerant piping or professional maintenance required

Specifications for SmartRack Portable Server Rack Cooling Unit - 12,000 BTU 120V (SRCOOL12K)

OVERVIEW
UPC Carton UPC#037332145765
INPUT
Nominal Input Voltage(s) Supported120V AC
Electrical Consumption1400 Watt Max
Input Connection Type NEMA 5-15P
Input Cord Length (ft.)6
Input Frequency60 Hz
USER INTERFACE, ALERTS & CONTROLS
Front Panel LEDsTouch sensitive control panel with multiple LEDs and numerical temperature readout
PHYSICAL
Shipping Dimensions (hwd / in.)33.100 x 15.400 x 29.000
Shipping Weight (lbs.)79.30
Unit Dimensions (hwd / in.)30.63 x 11.81 x 19.88
Unit Weight (lbs.)73.9
Material of ConstructionABS
Form Factors SupportedTower
ENVIRONMENTAL
Cooling Capacity12,000 BTU / 3.5 kW
SPECIAL FEATURES
Dehumidifier2.5 liters/ hour
Compressor TypeRotary
RefrigerantR410a (Environmentally friendly, Non ozone depleting)
Refrigerant Amount22 oz.
Air FlowEvaporator = 329 CFM / Condenser = 311 CFM
Amp Draw Nominal10.5A
Sound Level (Noise)57dB
Air Supply Tube Length71 inches
Air Exhaust Tube Length118 inches
Air Exhaust Tube Diameter5.16 inches
CERTIFICATIONS
CertificationsTested to UL484; CSA, RoHS
